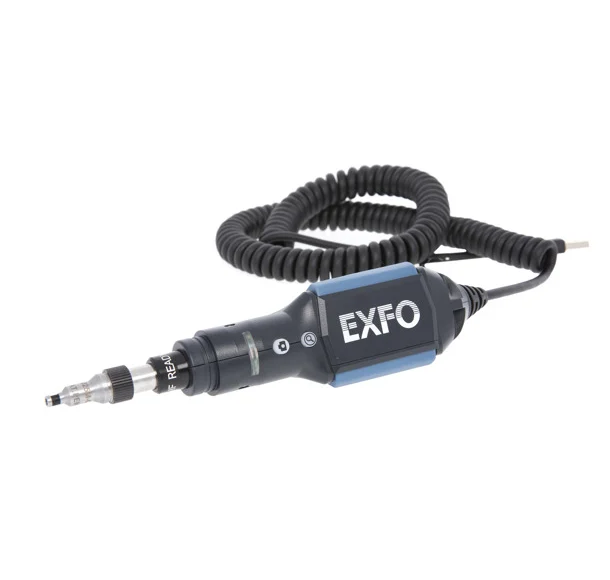

EXFO FIP-400B USB Fiber Inspection Scope
Manufacturer: EXFO Model: FIP-400B USB - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
USB FIBER INSPECTION SCOPE SPECIFICATIONS (FIP-4X0B)
Size (H x W x D): 47 mm x 42 mm x 162 mm (1 7/8 in x 6 1/8 in x 2 in)
Weight: 0.3 kg (0.66 lb)
Resolution: 0.55 µm
Camera sensor: Five-megapixel CMOS
Visual detection capability: <1 µm
Field of view:
304 µm x 304 µm (high magnification)
608 µm x 608 µm (mid magnification)
912 µm x 912 µm (low magnification)
Light source: Blue LED
Lighting technique: Coaxial
Capture button: Available on all models
Magnification button: Available on all models
Digital magnification: Three levels
Connector: Minimum USB 2.0
