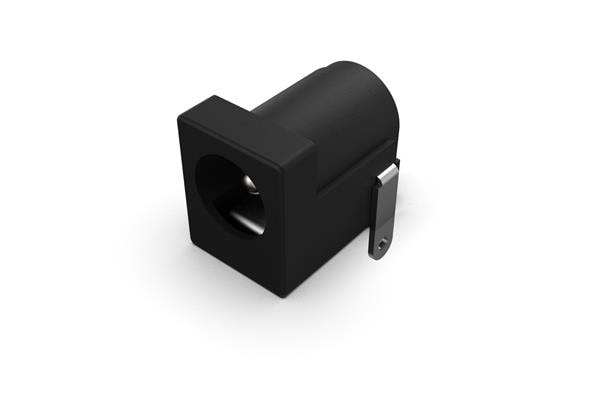

GCT (Global Connector Technology) DCJ200-10-A-K1-K Jacks DC Power Jack, Thru Hole, Horizontal, with pegs, oe2.00mm pin, 2 Con/3 Contact
Manufacturer: GCT (Global Connector Technology) Model: DCJ200-10-A-K1-K - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Color: Black
Unit Weight: 1.760 g
Connector Type: Jack
Contact Gender: Pin (Male)
Current Rating: 5 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Voltage Rating: 20 VDC
Contact Plating: Silver
Contact Material: Brass
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Lug
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 2 mm
Outside Contact Diameter: 6.3 mm
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 20 C
