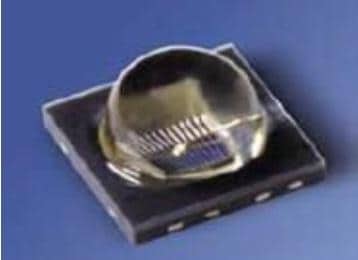

Lite-On LTE-R38386-S IR Emitters (IR LEDs) Infrared 850nm
Manufacturer: Lite-On Model: LTE-R38386-S - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Fall Time: 30 ns
Rise Time: 30 ns
Lens Shape: Dome
Wavelength: 850 nm
Viewing Angle: 90 deg
Mounting Style: SMD/SMT
Radiant Intensity: 300 mW/sr
Moisture Sensitive: Yes
If - Forward Current: 1 A
Vf - Forward Voltage: 2.5 V
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
