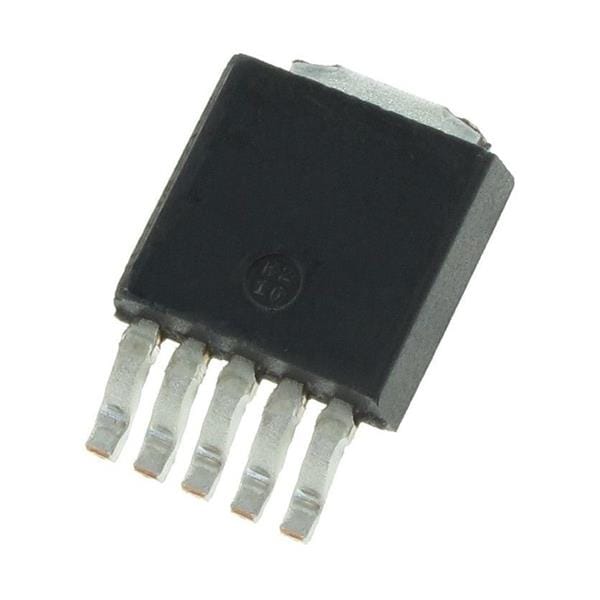

MaxLinear XRP6272ITC5TR-F 5 V or Adjustable LDO Voltage Regulator 2A LDO LOW NOISE 5V AND ADJ OUTPUT
Manufacturer: MaxLinear Model: XRP6272ITC5TR-F - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 6.1 mm
Height: 2.38 mm (Max)
Length: 6.73 mm (Max)
Polarity: Positive
Tolerance: 2 %
Output Type: Adjustable, Fixed
Unit Weight: 4 g
Mounting Style: SMD/SMT
Output Current: 2 A
Output Voltage: 700 mV to 5.3 V, 5 V
Dropout Voltage: 480 mV
Line Regulation: 3 mV
Load Regulation: 5 mV
Number of Outputs: 1 Output
Quiescent Current: 30 uA
Reference Voltage: 700 mV
Moisture Sensitive: Yes
Input Voltage - Max: 6 V
Input Voltage - Min: 1.8 V
Output Voltage Range: 700 mV to 5.3 V
Dropout Voltage - Max: 960 mV
Voltage Regulation Accuracy: 2 %
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 70 dB
