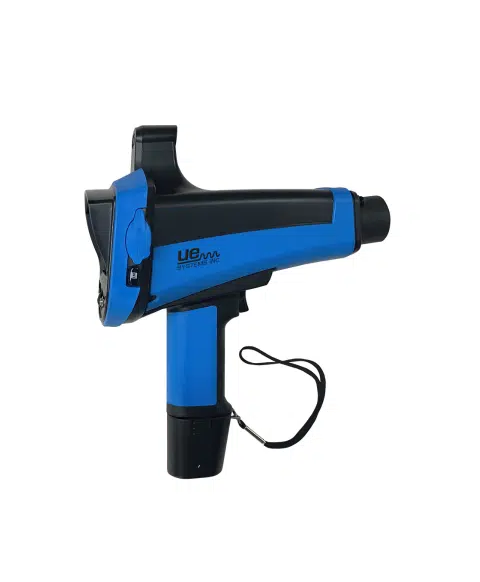

UE Systems Inc Ultraprobe 15000 Ultrasonic Inspection System for condition monitoring (20 KHz -100 KHz)

Construction: ABS/Polylend Blend Plastic Shielded

Circuitry: Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion

Frequency Range: 20 kHz to 100kHz (tunable in 1kHz increments)

Response Time: < 0ms

Display: QVGA touch screen – IR, Laser Pointer, Camera, Spectrum Analyzer

Sound Recording: WAV file format

IR Temperature: -20°C to 500°C

Camera: 5.0 Mega Pixel

Laser: Output power < 1mW – Wavelength 640nm – Class II Laser Product

Memory: 32 GB

Battery: Lithium ION Rechargeable

Operating Temperature: 0°F to 122°F (-18°C to 50°C)

Outputs: Calibrated heterodyned output, decibel (dB) frequency, SD card, Wi-Fi – Supported wireless standards n,b,g – Frequency 2.4 GHz – Security TKIP, AES, WPA and WPA2

Bluetooth: Version 4.2 – Supported profile A2DP – Frequency range 2.4GHz

Probes: Trisonic Scanning Module and Stethoscope Module, Long Range Module and RAS-MT

Headsets: Deluxe noise attenuating headphones - for hard hat use * Optional Bluetooth headsets available

Indicators: dB, Frequency, Battery Status and 16 Segment Bar Graph

Sensitivity: Detects .127 mm (.005") diameter leak @ .34 bar (5 psi) at a distance of 15.24 m (50 ft.) *

Threshold: 1x10^-2 std.cc/sec to 1x10^-3 std.cc/sec

Dimensions: Complete kit in aluminum carrying case 55x47x20 cm(21.5"x18.5"x8")

Weight: Pistol Unit:11kg(235lbs.), COMPLETE CARRYING CASE: 8.6kg(19lbs)

Warranty: 5 years parts/labor

Display Modes: dB(main), IR, ABCD, Spectrum and Application Specific; Spectrum Analyzer modes: Spectrum, Time Series & Dual Specific

Ultraprobe15,000 KIT: Meets and exceeds ASTM E1002–2005 requirements for Leak Detection depending upon leak configuration.
