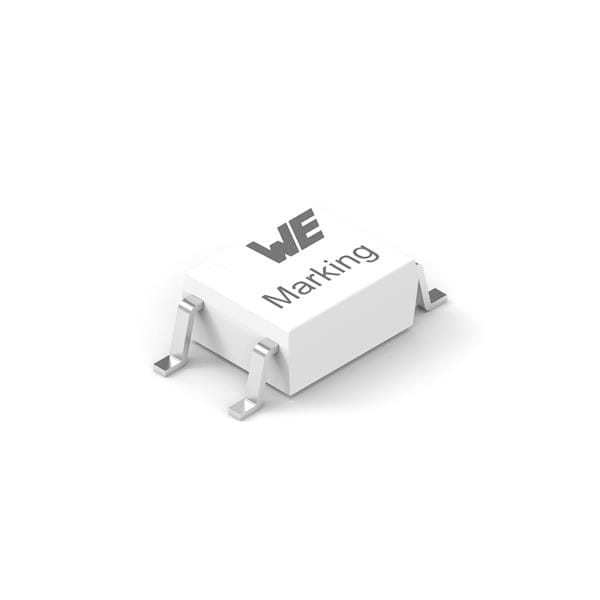

Wurth Elektronik 140357145200 Transistor Output Optocouplers WL-OCPT 35V 3.75KVrm 10pF SOP 4 V-Type
Manufacturer: Wurth Elektronik Model: 140357145200 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Fall Time: 4 us
Rise Time: 3 us
Output Type: Phototransistor
Configuration: 1 Channel
Mounting Style: SMD/SMT
Isolation Voltage: 3750 Vrms
Number of Channels: 1 Channel
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.24 V
Vr - Reverse Voltage: 6 V
Pd - Power Dissipation: 150 mW
Maximum Collector Current: 50 mA
Current Transfer Ratio - Max: 260 %
Current Transfer Ratio - Min: 130 %
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 35 V
Collector-Emitter Breakdown Voltage: 35 V
Maximum Collector Emitter Saturation Voltage: 200 mV
