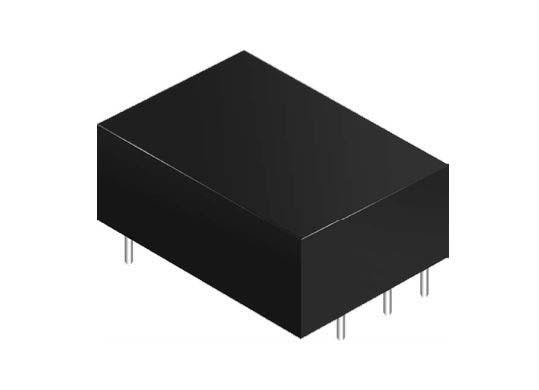

Adam Tech AC025-D15 AC/DC出力モジュール AC-DCコンバーター、アイソレート、ユニバーサル入力90-264VAC、デュアル出力、±15VDC出力電圧、24W

Width: 50.8 mm

Height: 25.4 mm

Length: 76.2 mm

Industry: Industrial

Approvals: EN 62368-1

Dimensions: 76.2 mm x 50.8 mm x 25.4 mm

Output Power: 24 W

Input Voltage: 90 VAC to 264 VAC, 120 VDC to 370 VDC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 2 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 800 mA

Output Current-Channel 2: - 800 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 V

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
