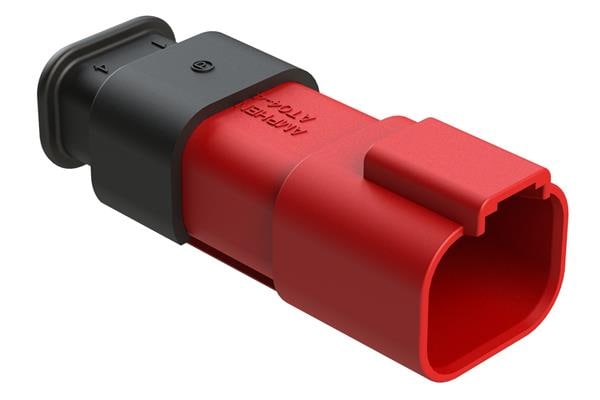

Amphenol SINE Systems AT04-4P-SR01RED レセプタクル 4ポジション、レセプタクル、ピン、SR01 ストレインリリーフ（標準シール）、赤ボディ

Color: Red

Width: 21 mm

Gender: Pin (Male)

Height: 19.6 mm

Length: 58.5 mm

Contact Type: Pin (Male)

Mating Gender: Plug

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP68, IP69K

Number of Positions: 4 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
