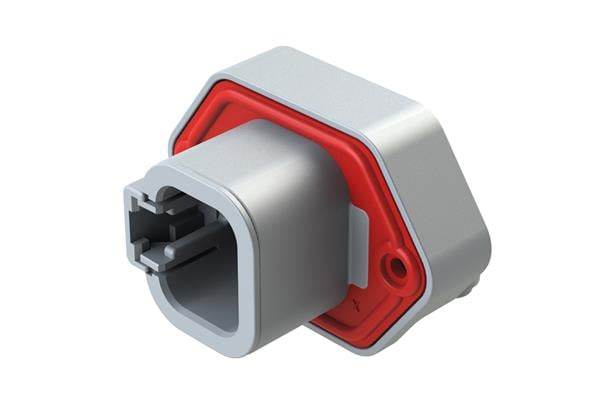

Amphenol SINE Systems ATP13-4P-BM03GRY 4ウェイ4ポジション90度PCBフランジマウントレセプタクル錫ピン

Color: Gray

Pitch: 6.7 mm (0.264 in)

Gender: Receptacle (RP - Male)

Insulation: Insulated

Row Spacing: 7 mm

Contact Type: Pin

Current Rating: 25 A

Mounting Angle: Right Angle

Mounting Style: Mounting Flange

Number of Rows: 2 Row

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: Solder Pin

Ingress Protection: IP67

Mating Part Number: ATP06-4S

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
