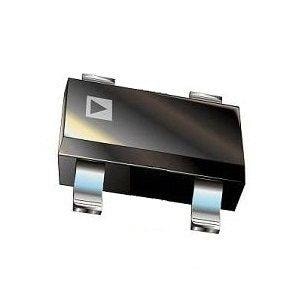

Analog Devices ADM6384YKS31D1Z-R7 電圧監視用4ピンリセットジェネレーターIC

Width: 1.35 mm (Max)

Height: 1 mm (Max)

Length: 2.2 mm (Max)

Output Type: Active Low, Push-Pull

Manual Reset: Manual Reset

Mounting Style: SMD/SMT

Watchdog Timers: No Watchdog

Reset Delay Time: 2 ms

Threshold Voltage: 3.08 V

Chip Enable Signals: No Chip Enable

Power Fail Detection: No

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1 V

Overvoltage Threshold: 3.15 V

Undervoltage Threshold: 3 V

Battery Backup Switching: No Backup

Operating Supply Current: 13 uA

Number of Inputs Monitored: 1 Input

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
