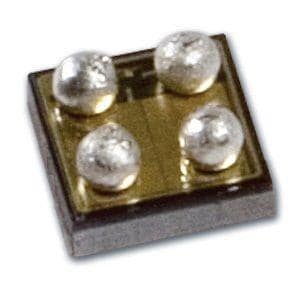

Analog Devices ADP151ACBZ-3.3-R7 リニア電圧レギュレーター 200mA LDO 3.3V出力

Width: 0.76 mm

Height: 0.4 mm

Length: 0.76 mm

Polarity: Positive

Output Type: Fixed

Unit Weight: 68.400 mg

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 3.3 V

Line Regulation: 0.05 %/V

Load Regulation: 0.002 %/mA

Number of Outputs: 1 Output

Quiescent Current: 265 uA

Input Voltage - Max: 5.5 V

Input Voltage - Min: 2.2 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
