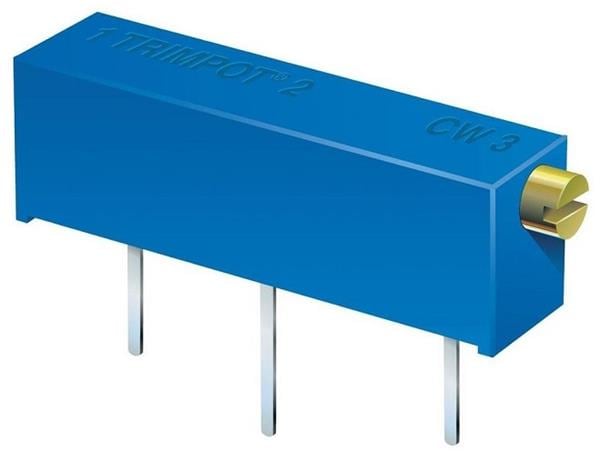

Bourns 3006P-1-101Z 0.75インチ 長方形トリミングポテンショメーター 100オーム 3/4" 10% 密閉型 マルチターン

Width: 4.83 mm

Height: 6.35 mm

Length: 19.05 mm

Tolerance: 10 %

Adjustment: Side Slot

Resistance: 100 Ohms

Orientation: Horizontal Adjustment

Unit Weight: 1.134 g

Element Type: Cermet

Power Rating: 750 mW (3/4 W)

Mounting Style: PCB Mount

Number of Turns: 15 Turn

Termination Style: PC Pin

Temperature Coefficient: 100 PPM / C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
