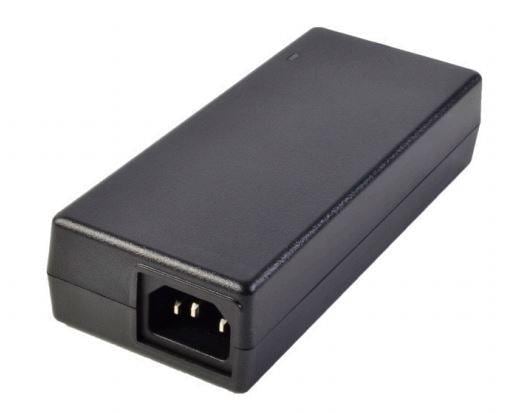

CUI Inc SDI90B-56-U-P5R デスクトップACアダプター AC-DC、56 Vdc、1.60A、SW、C14デスクトップ、P5右中央ポジション、コードなし、レベルVI

Width: 53.5 mm

Height: 33 mm

Length: 133.5 mm

Industry: Medical, Industrial

Standard: 62368-1

Approvals: PSE, UKCA, UL/cUL

Efficiency: Level VI

Output Power: 90 W

AC Inlet Type: C14

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Mounting Style: Desktop

Load Regulation: Regulated

Center Pin Length: 9.5 mm

Number of Outputs: 1 Output

DC Output Connector: 2.1 mm Barrel Plug (2.1x5.5x9.5) Right Angle

Connector A Polarity: Center Positive

DC Output Cord Length: 1.5 m

Output Current-Channel 1: 1.6 A

Output Voltage-Channel 1: 56 VDC

AC Plug included/required: Included

Maximum Operating Temperature: + 40 C

Minimum Operating Temperature: - 20 C
