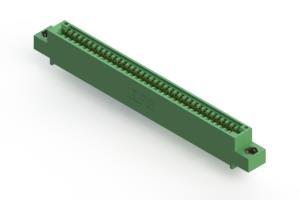

EDAC 845-037-524-408 標準カードエッジコネクタ .100" (2.54mm) ピッチカードエッジコネクタ

Pitch: 2.54 mm

Current Rating: 3 A

Mounting Angle: Vertical

Mounting Style: Panel

Number of Rows: 1 Row

Board Thickness: 1.57 mm

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Diallyl Phthalate (DAP)

Termination Style: Solder Pin

Number of Positions: 37 Position

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
