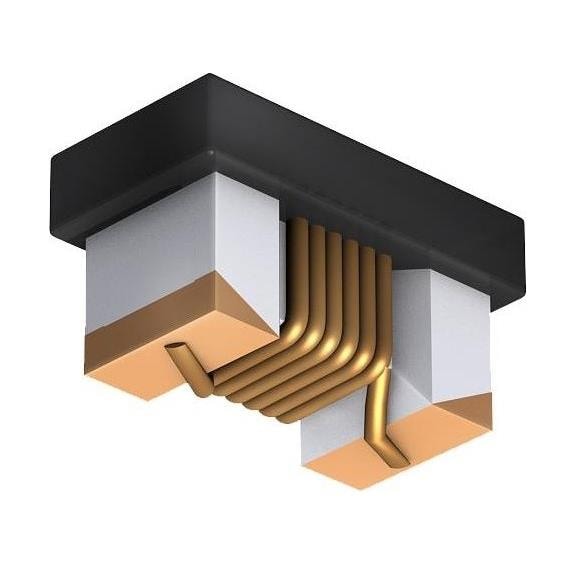

Fastron 0402AS-039G-08 ワイヤ巻きチップインダクタ（ワイヤ巻き-オープン）；39nH；許容差：2%

Width: 0.65 mm

Height: 0.7 mm

Length: 1.2 mm

Core Type: Wirewound

Q Minimum: 25

Shielding: Unshielded

Tolerance: 2 %

Inductance: 39 nH

Application: RF

Termination: Standard

Unit Weight: 1 mg

Core Material: Ceramic

Qualification: AEC-Q200

Mounting Style: PCB Mount

Test Frequency: 250 MHz

Termination Style: SMD/SMT

Maximum DC Current: 200 mA

Maximum DC Resistance: 550 mOhms

Self Resonant Frequency: 2.1 GHz

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
