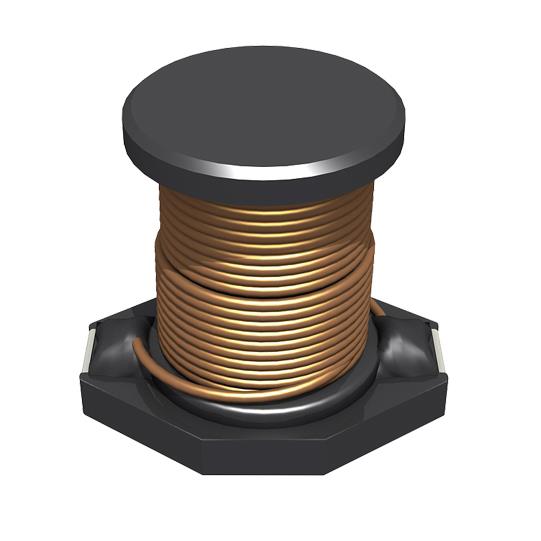

Fastron PISNHV-101M-04 パワーインダクタ 100uH 20%許容差 SMDパワーインダクタ

Width: 9.55 mm

Height: 11.5 mm

Length: 13 mm

Core Type: Wirewound

Shielding: Shielded

Tolerance: 20 %

Inductance: 100 uH

Application: Power

Termination: Standard

Core Material: Ferrite

Qualification: AEC-Q200

Mounting Style: PCB Mount

Test Frequency: 100 kHz

Termination Style: SMD/SMT

Maximum DC Current: 1.51 A

Saturation Current: 2.24 A

Maximum DC Resistance: 190 mOhms

Self Resonant Frequency: 4.46 MHz

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
