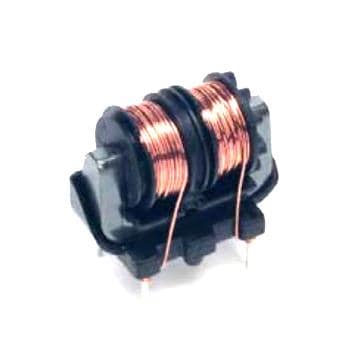

KEMET SSR10V-17058 高インピーダンスコモンモードフィルター 250VAC 5.8mH 1.7A 11.5mm DCR=180mΩ

Width: 13 mm

Height: 21 mm

Length: 3.5 mm

Diameter: 23.5 mm

Inductance: 5.8 mH

Application: Power

Filter Type: Common mode

Unit Weight: 9 g

Core Material: Ferrite

Lead Diameter: 0.7 mm

Mounting Style: PCB Mount

Test Frequency: 10 kHz

Termination Style: Through Hole

Maximum DC Current: 1.7 A

Number of Channels: 1 Channel

Maximum DC Resistance: 180 mOhms

Maximum Operating Temperature: + 120 C

Minimum Operating Temperature: - 25 C
