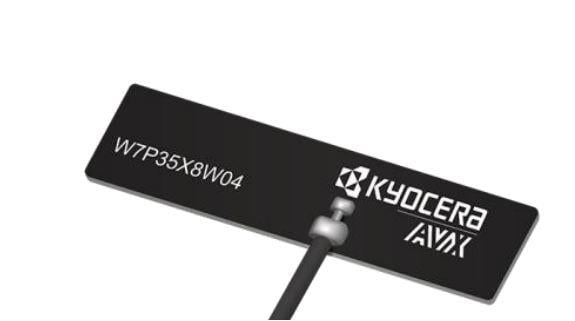

KYOCERA AVX W7P35X8W04-U250D3B0A PCBアンテナ トライバンド 2.4-6GHz Wi-Fi 6E/7 埋め込み型 PCB 2400-7125MHz 250オーム 2W 50mm ケーブル MHF

Gain: 6 dBi

Width: 8.5 mm

Height: 0.4 mm

Length: 35.2 mm

Impedance: 50 Ohms

Cable Length: 250 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Number of Bands: 3 Band

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: MHFI

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
