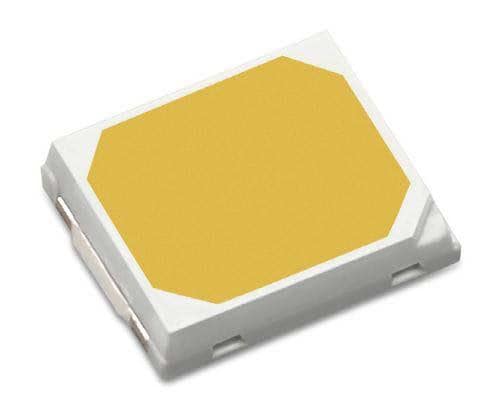

Lumileds L128-5090HA35000K4 低消費電力LED クールホワイト 2835HE 3V 90 CRI 3 SDCM (P,Q,X,Y) + 反対ビンマッチングキット (E+G, F+H)

Width: 2.8 mm

Height: 0.7 mm

Length: 3.5 mm

Lens Color: Yellow

Lens Shape: Rectangular

Power Rating: 195 mW

Viewing Angle: 120 deg

Mounting Style: SMD/SMT

Lens Dimensions: 2.95 mm x 2.48 mm

Lens Transparency: Diffused

Illumination Color: Cool White

If - Forward Current: 65 mA

Vf - Forward Voltage: 3 V

Luminous Flux/Radiant Flux: 35 lm

Color Rendering Index - CRI: 90

Wavelength/Color Temperature: 5000 K

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
