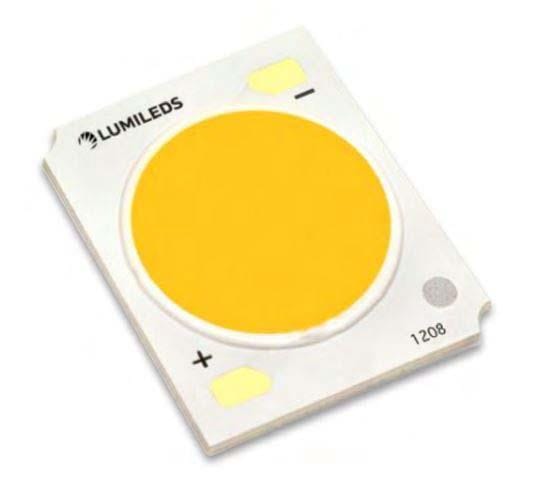

Lumileds LC5-27901202I0900 ミッドパワーLED ウォームホワイト CoB 90 CRI ミッドパワー2700K

Width: 16 mm

Height: 1.7 mm

Length: 19 mm

Lens Color: Yellow

Lens Shape: Round Flat

Power Rating: 6.78 W

Viewing Angle: 115 deg

Mounting Style: SMD/SMT

Lens Dimensions: 9 mm

Lens Transparency: Diffused

Illumination Color: Warm White

If - Forward Current: 200 mA

Vf - Forward Voltage: 33.9 V

Luminous Flux/Radiant Flux: 1126 lm

Color Rendering Index - CRI: 90

Wavelength/Color Temperature: 2700 K

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
