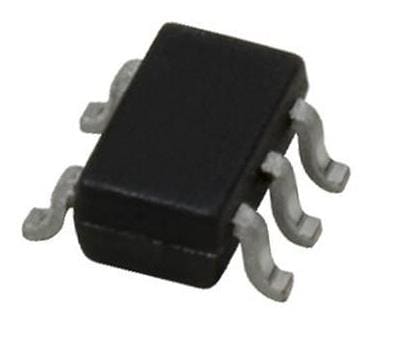

onsemi M74VHC1GT126DF1G バッファ＆ラインドライバー 3-5.5V シングル 非反転 TTL

Width: 1.35 mm

Height: 1 mm

Length: 2.2 mm

Function: Buffer/Line Driver

Polarity: Non-Inverting

Logic Type: CMOS

Technology: CMOS

Output Type: 3-State

Unit Weight: 20 mg

Logic Family: VHC

Mounting Style: SMD/SMT

Input Signal Type: Single-Ended

Quiescent Current: 1 uA

Number of Channels: 1 Channel

Supply Current - Max: 1 uA

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3 V

Number of Input Lines: 1 Input

Number of Output Lines: 3 Output

Pd - Power Dissipation: 200 mW

Propagation Delay Time: 11.5 ns

Low Level Output Current: 8 mA

Operating Supply Current: 40 uA

Operating Supply Voltage: 3 V to 5.5 V

High Level Output Current: - 8 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
