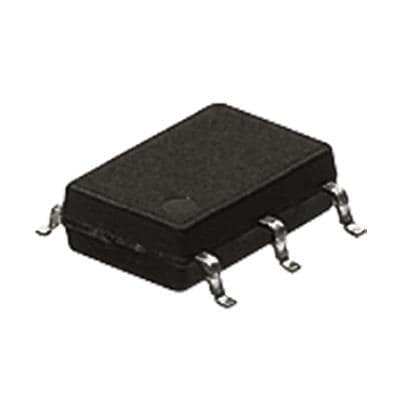

Panasonic Industrial Devices AQV252G3SZ ソリッドステートリレー PhotoMOS SOP 1Form A 3.3A 60V AC/DC

Width: 4.4 mm (0.173 in)

Height: 2.1 mm (0.083 in)

Length: 6.3 mm (0.248 in)

Output Type: Photo MOSFET

Unit Weight: 307 mg

Contact Form: SPST (1 Form A)

Input Current: 50 mA

Mounting Style: PCB Mount

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 3.3 A

Load Voltage Rating: 60 VAC, 60 VDC

Control Voltage Range: 1.32 VDC

Pd - Power Dissipation: 500 mW

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Input to Output Isolation Method: Optocoupler
