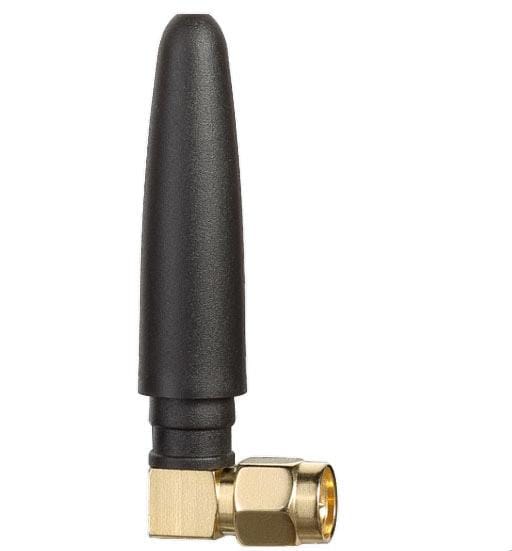

Quectel YEGT001AA 屋外アンテナ 外部パッシブ, 1559-1606, GNSS L1, スパイラル, -, SMAオス（センターピン）, ターミナル, 50 Ω

Gain: 3.16 dBi

VSWR: 2

Frequency: 1.559 GHz to 1.606 GHz

IP Rating: IP64

Impedance: 50 Ohms

Application: GNSS

Polarization: Linear

Mounting Style: Screw Mount

Frequency Range: 1.559 GHz to 1.606 GHz

Number of Bands: 1 Band

Maximum Frequency: 1.606 GHz

Minimum Frequency: 1.559 GHz

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
