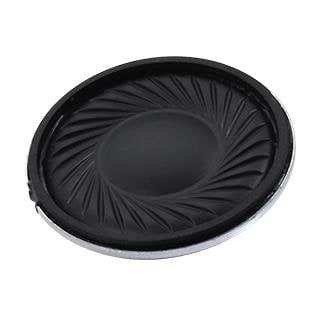

Same Sky (formerly CUI Devices) CMS-305-158SP-67 マイクロスピーカー、直径30mm、深さ5.7mm、PEI、Nd-Fe-B、1.5W、8オーム、550Hz、はんだパッド

Depth: 5.7 mm

Shape: Round

Height: 5.7 mm

Diameter: 30 mm

Frequency: 550 Hz

IP Rating: IP67

Impedance: 8 Ohms

Dimensions: 30 mm x 5.7 mm

Power Rating: 1.5 W

Cone Material: Polyetherimide (PEI)

Mounting Style: Panel Mount

Magnet Material: Neodymium Iron Boron (NdFeB)

Termination Style: Solder Pad

Frequency Response: 10 kHz

Sound Pressure Level: 97 dBA

Self Resonant Frequency: 550 Hz

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
