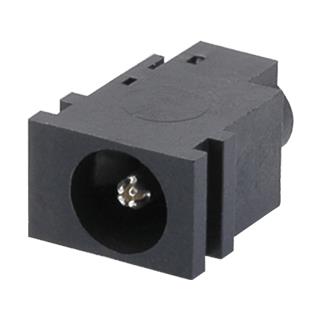

Same Sky (formerly CUI Devices) PJ-042H ジャック 1.65 x 5.15 mm、5.0 A、水平、スルーホール、曲がったピン、DC電源ジャックコネクタ

Color: Black

Unit Weight: 1 g

Connector Type: Jack

Contact Gender: Pin (Male)

Current Rating: 5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 24 VDC

Contact Plating: Silver

Contact Material: Brass

Housing Material: Polyamide (PA)

Termination Style: Through Hole

Flammability Rating: UL 94 V-0

Insulation Resistance: 100 MOhms

Inside Contact Diameter: 1.65 mm

Outside Contact Diameter: 5.15 mm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
