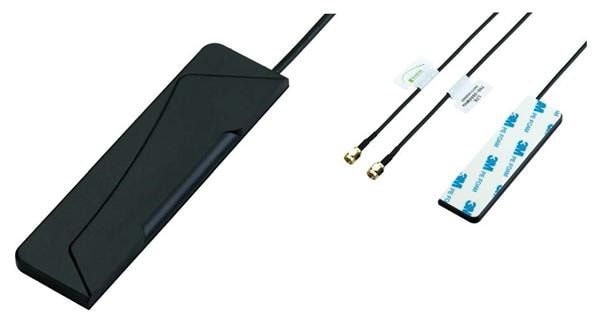

Taoglas GSA.8827.A.101111 パッシブアンテナ Phoenix GSA.8827 5G/4G Iバー接着アンテナ、SMA(M)、1m RG-174

Gain: - 0.7 dBi, 0.49 dBi, 0.51 dBi, - 0.93 dBi, - 0.67 dBi, - 0.47 dBi, - 0.36 dBi, - 1.66 dBi

Style: I-Bar

Width: 30 mm

Height: 7.7 mm

Length: 105 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: RG174

Technology: UWB

Application: First Tier Automotive Application

Unit Weight: 167.832 g

Cable Length: 1 m

Polarization: Linear

Power Rating: 50 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 8 Band

Center Frequency: 750 MHz, 850 MHz, 900 MHz, 1800 MHz, 1575.42 MHz, 1900 MHz, 2100 MHz, 2500 MHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 703 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: Galileo, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, EDGE, GPRS, HSPA, WCDMA
