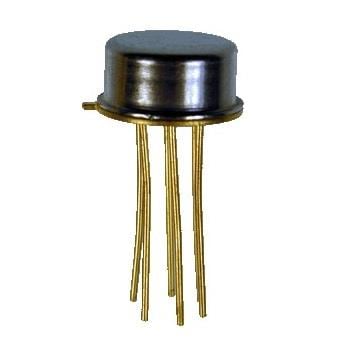

TT Electronics / Optek Technology 4N23 トランジスタ出力フォトカプラ フォトカップルドアイソレータ

Fall Time: 15 us

Rise Time: 15 us

Output Type: NPN Phototransistor

Configuration: 1 Channel

Mounting Style: Through Hole

Isolation Voltage: 1000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 10 mA

Vf - Forward Voltage: 1.3 V

Vr - Reverse Voltage: 2 V

Current Transfer Ratio: 20 %

Pd - Power Dissipation: 300 mW

Maximum Collector Current: 50 mA

Current Transfer Ratio - Min: 60 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 65 C

Maximum Collector Emitter Voltage: 35 V

Maximum Collector Emitter Saturation Voltage: 300 mV
