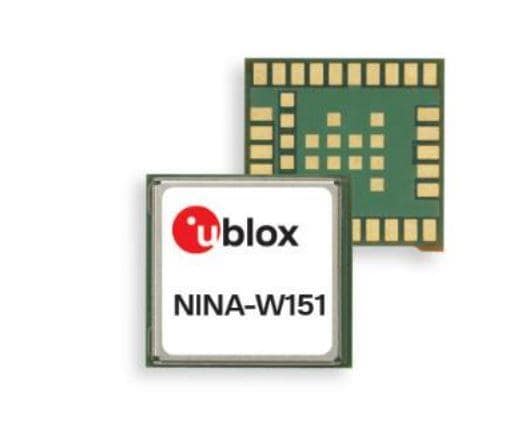

u-blox NINA-W151-04B マルチラジオモジュール ESP32、802.11bgn+BT、アンテナピン、u-connectXpress

Data Rate: 54 Mb/s

Frequency: 2.4 GHz

Modulation: GFSK

Output Power: 8 dBm, 18 dBm

Interface Type: GPIO, I2C, I2S, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Modulation Technique: GFSK

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: u.FL

Operating Supply Voltage: 3 V

Protocol - WiFi - 802.11: 802.11 b/g/n

Supply Current Receiving: 110 mA, 125 mA

Supply Current Transmitting: 170 mA, 150 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
