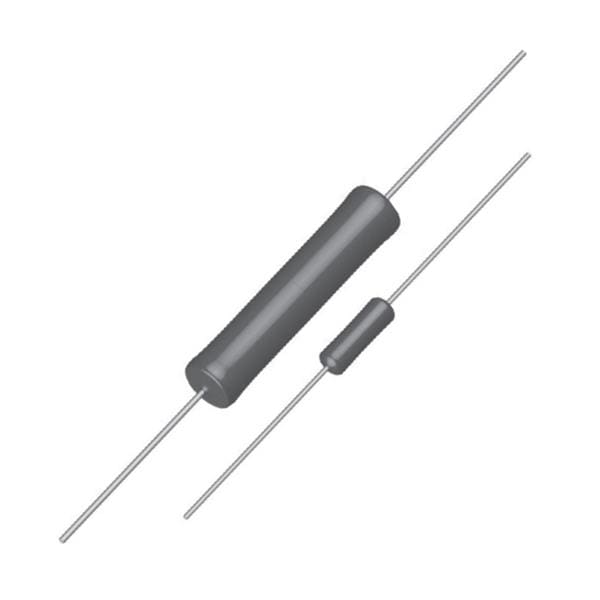

Vishay Dale CW02C36R70KE1214 巻線抵抗器、商用電力用、シリコンコーティング、軸方向リード CW-2C-14 36.7 10% E12 e3

Width: 5.5 mm

Length: 12.7 mm

Features: Coated Resistors, Silicone Coated

Tolerance: 10 %

Technology: Wirewound

Unit Weight: 700 mg

Lead Diameter: 1.02 mm

Mounting Style: PCB Mount

Voltage Rating: 11 V

Termination Style: Axial

Operating Temperature Range: - 65 C to + 250 C

Maximum Operating Temperature: + 250 C

Minimum Operating Temperature: - 65 C
