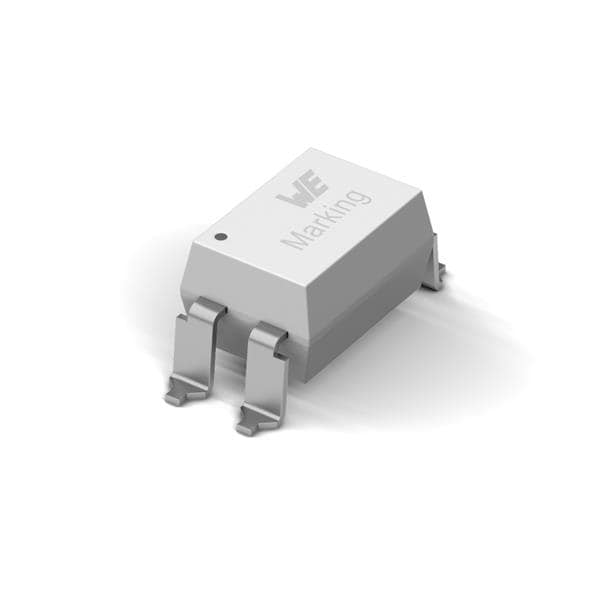

Wurth Elektronik 140816143400 トランジスタ出力フォトカプラ WL-OCPT 80V 5KVrms 10pF Dip 4 SLタイプ

Fall Time: 4 us

Rise Time: 3 us

Output Type: Phototransistor

Configuration: 1 Channel

Mounting Style: Through Hole

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 60 mA

Vf - Forward Voltage: 1.24 V

Vr - Reverse Voltage: 6 V

Pd - Power Dissipation: 200 mW

Maximum Collector Current: 50 mA

Current Transfer Ratio - Max: 600 %

Current Transfer Ratio - Min: 300 %

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 55 C

Maximum Collector Emitter Voltage: 80 V

Collector-Emitter Breakdown Voltage: 80 V

Maximum Collector Emitter Saturation Voltage: 200 mV
