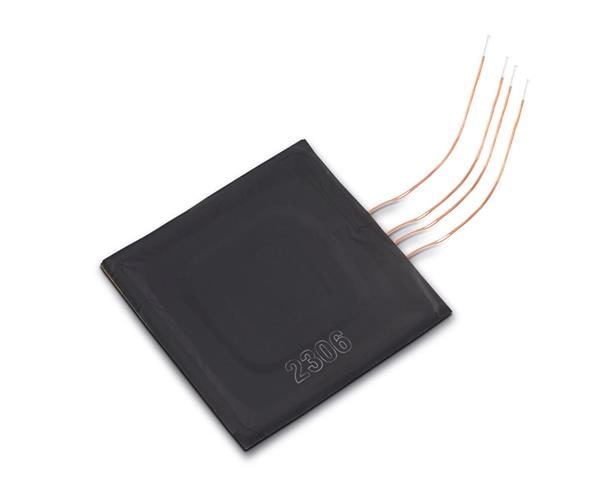

Wurth Elektronik 760308102306 ワイヤレス充電コイル WE-WPCC レシーバー Qi 1.4uH 2.0A 0.33オーム WPT / NFC用コンビネーションコイル

Width: 44 mm

Length: 44 mm

Function: Receiver

Q Minimum: 19

Tolerance: 10 %

Inductance: 8 uH, 1.4 uH

Unit Weight: 4.470 g

Number of Coils: 2 Coil, 1 Layer

Maximum DC Resistance: 400 mOhms, 100 mOhms

Self Resonant Frequency: 17.5 MHz, 19 MHz

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 20 C
