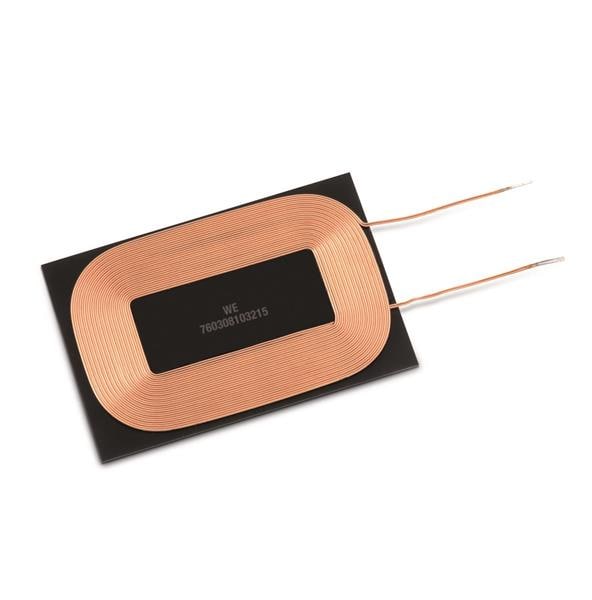

Wurth Elektronik 760308103215 ワイヤレス充電コイル WE-WPCC Rcvr 4832 14.3uH 0.19Ohm Qi

Width: 1 mm

Length: 48 mm

Function: Receiver

Q Minimum: 40

Tolerance: 10 %

Inductance: 14.3 uH

Unit Weight: 7.892 g

Number of Coils: 1 Coil, 1 Layer

Maximum DC Resistance: 190 mOhms

Self Resonant Frequency: 8.8 MHz

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 20 C
