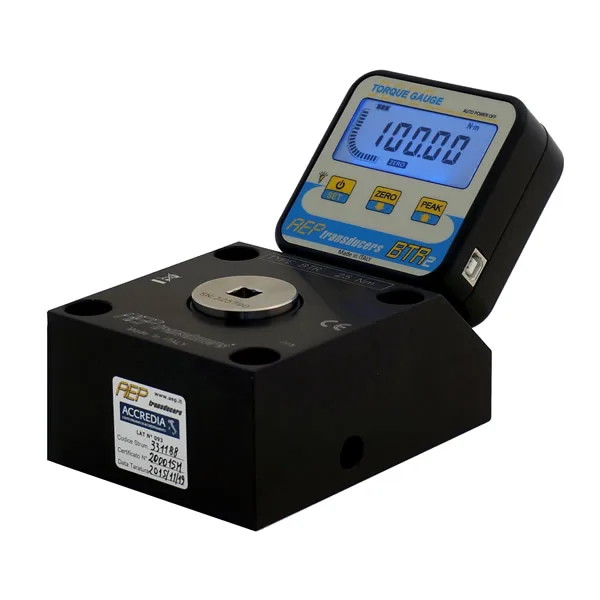

With option: sensor + accessories
Precision class uni 113114 (euramet cg-14) : 1 from 10% to 100% f.s
Linearity and hysteresis:. ≤0.20 % f.s.
Nominal torque (f.s.) 2000 n•m
Internal resolution : 24 bit
Direct reading: conversion per second: 10 hz
Peak mode: conversion per second: 4800 hz
Reference temperature : +23 °c
Service temperature range : 0 / +50 °c
Storage temperature range: -10 / +60 °c
10°c temperature effect
a) on zero : ≤ 0.015 %
b) on sensitivity : ≤ 0.005 %
Programmable resolution : 1, 2, 5, 10
Programmable digital filter : from 0 to 10 (direct reading)
Zero function : 100 % f.s.
Peak function : clockwise and counterclockwise
First peak function programmable : from 1 to 99 % f.s.
Peak auto reset programmable : clear the peak after a set time
Auto power off function : from 1 to 30 minutes (no changes)
Key block function (lock) to protect parameters from changes
Measurement units: kn•m - n•m - n•cm - dan•m - kgf•m ozf•ft - lbf•ft - ozf•inch - lbf•inch Communicaton port : USB 2.0
Mode continuos transmission mode : 4800 values per second
On demand transmission : on demand
Max distance: 5 m
Power supply by internal battery : li-ion 1800ma/h 3.6v rechargeable
Battery recharge : through usb
Battery life : 80 hours
Time to recharge: 8 hours
Mechanical features
Process coupling (uni iso 1174-1): 1” female
Mechanical limit values:
a) service torque : 100 % f.s
b) max. permissible torque : 150 % f.s.
c) breaking torque. >300 % f.s.
Tightening wrench: 27 mm
Tightening torque: 28 n•m
Protection class (EN60529): IP40
Sensor execution material: inox 17-4 ph
Case execution: material alluminium and steel
