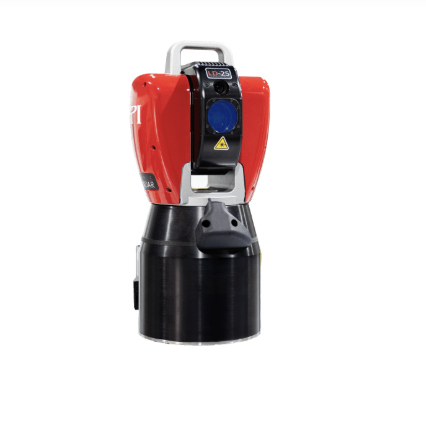

API LD-15 ໄດນາມິກ 9D LADAR (1.0 m ~ 15 m)
Measuring Range: 1.0 m to 15 m
Linear Accuracy: 20 µm + 2 µm/m (2σ)
3D Accuracy: 25 µm + 6 µm/m (2σ)
Incidence Angle: ≤ 85°
Azimuth Gimble Range: ±320°
Front Side Elevation Gimble Range: -50° to 80°
Back Side Elevation Gimble Range: 100° to 215°
Maximum Data Rate: 20,000 points/second
Transverse Resolution: 0.05 mm to 50 mm (distance dependent)
iVision Camera: 8 MP Digital Zoom (15 fps), Features Recognition, FoV Horizontal 17° / Vertical 13°
Measuring Laser Safety Rating: Class 1 (1550 nm Wavelength)
Pointing Laser Safety Rating: Class 1 (635 nm), IEC 60825-1 (Eye safe)
Total Weight: 10.4 kg
Controller: Fully Integrated
Overall Dimensions: 191 mm × 254 mm × 432 mm
Warm-up Time: 20 minutes (typical)
