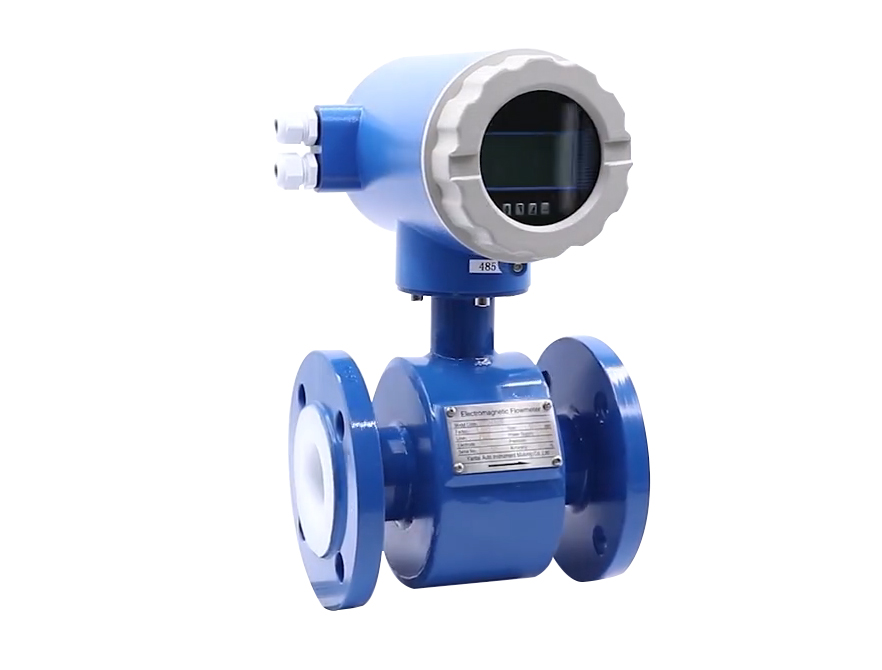

Auto Instrument DN10~DN2000mm ເຄື່ອງວັດແທກກະແສໄຟຟ້າ
Pipe size: DN10~DN2000mm
Medium: conductive liquid,slurry
Conductivity: ≥ 5 μS/cm
Accuracy: ±0.5%, ±1.0%
Repeatability: ±0.1%
Rated Pressure: 0.25, 0.6, 1.0, 1.6, 4.0MPa (or specified by customer)
Display: Instantaneous flowrate, total flow, velocity, flowrate percentage with back light
Signal output: 4~20mA current output, pulse output, RS-485, Hart, Profibus-DP
Power supply: 220VAC, 24VDC
Convert type: Compact, remote
Protection grade: IP67/ IP68
Explosion proof: Ex deibmb IIC T3~6
Velocity: 0.3 ~ 12m/s( 0.1 ~ 15m/s as required)
Liner: Chloroprene Gum (DN50 ~ DN3200) / Polyurethane (DN25 ~ DN500) / F4 (PTFE) (DN25 ~ DN1600) / F46 (FEP) (DN10~DN200) / PFA (DN10~300)
Flowing direction: Forward, Reverse
Electrode material: 316L, Pt, Ta, Ti, HB, HC, WC
Electrode type: Standard fixed type, blade type
Electrode numbers: 4 ~ 6 pcs
Flange material: SS / CS
Alarm(normal open): Empty, excitation, upper / lower limit
Ambient: -25 ~ +60oC, Humidity: 5 ~ 90%
Communication: RS-485 / Hart / Profibus-DP
Read the documentation carefully before ordering
