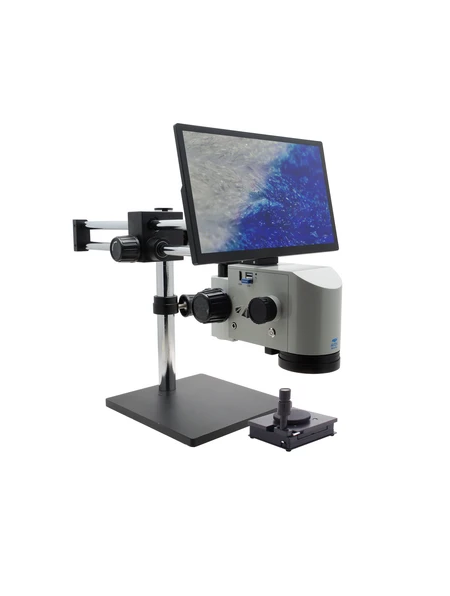

Aven 26700-141-534XYR ກ້ອງຈຸລະທັດດິຈິຕອນ (21x - 133x)

Sensor Size: 1/2.8”

Effective Pixels: Full HD

Frame Rate: 1920 × 1080P @ 60FPS

Output: HDMI, USB Mouse, USB Storage, MicroSD Card Port

Pixel Size: 3.75 × 3.75 μm

Power: DC 12V/2A

Mark Function: Point coordinates, reticle coordinates, text annotation

Length Measurement: Straight-line length, broken-line length, curved-line length, distance between parallel lines, point-to-line distance

Center Distance of Circles: Circle from a radius, two-point circle, three-point circle

Geometric Measurement: Line length, circle from a radius, two-point circle, three-point circle, concentric circles

Geometry Area: Polygon, rectangle

Image Capture: Supports 2-megapixel still photos

Video Recording: Supports 1080p video

Power Adapter:

Input: AC 100–240V, 50–60Hz

Output: DC 12V — 3A

Other Features: Horizontal/vertical image mirroring, monochrome/color image display, image freeze, image contrast adjustment

Magnification: 20.7×–133.4× (based on the built-in monitor)

Double Arm Boom Stand with Heavy Metal Base

Base Size: 285 × 260 × 18 mm

Base Weight: 17.35 kg (38 lbs)

Base Size: 285 × 260 × 18 mm (11.22 × 10.23 × 0.70”)

Vertical Post Length: 380 mm (15”)

Vertical Extension Post: 6” (154 mm)

Vertical Post Diameter: 37.2 mm

Horizontal Arm Length: 384 mm

Horizontal Arm Diameter: 20 mm

Focus Mount Hole Diameter: 15.875 mm (5/8”)

Accepted Mounts: SCW-PA focus mount with tiltable arbor 26800B-521 or E-Arm

Accepted Bodies: SSZ, SPZ, DSZ and NSW series

Compact Gliding Stage X/Y/R

Base Size: 135 × 120 × 93 mm (5.3 × 4.7 × 3.6 inch)

Rotating Stage Diameter: Ø73 mm (Ø2.87 inch)

Movement: 70 mm / 30 mm / 360° (X/Y/R)

Rotation Stage Material: Aluminum alloy

Base Material: Plastic

Weight: 1.76 lb
