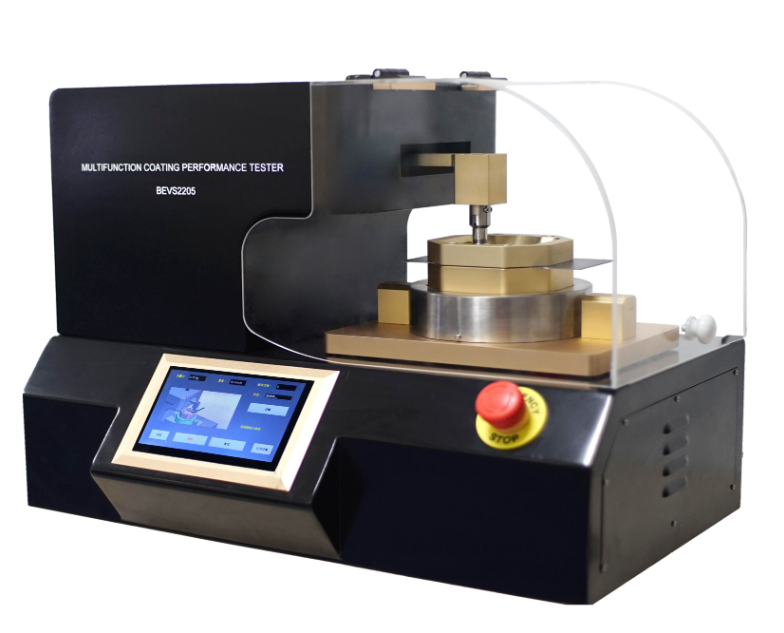

Bevs BEVS 2205 Multifunction Coating ທົດສອບປະສິດທິພາບ (0.5 - 20mm)

Panel Size: Max. 150 x 75mm

Sample Thickness: 0.5 - 20mm

Standard Load Range: 2 - 50N

Special Load Range: 1 - 10N (Optional)

Cutting Stroke Length: Max. 45mm

Cutting Speed: 2 - 40mm/s

Cutting Space: 1-5mm

Scratch Stylus: Ø 0.5/1.0/ 2.0mm

Pencil: 9B - 9H

Dimension: 550L x 410W x 520H mm

Power Supply: 110/230V AC, 50/60Hz (Optional)

Max Power: 500W

Introduction

This instrument enables to test the scratch resistance performance, adhesion performance, hardness and linear abrasion on the coating. It has an automatic sample locking test platform, rotation and movement, test pressure adjustment and speed adjustment can be achieved. With the improvement of product quality and QC frequency increasing, the traditional manual test method will be replaced by intelligent, automated method, to avoid human error caused by the operator. BEVS 2205 provides fast and accurate test results for companies which have batch testing requirement, R&D department and testing organizations.

Features:

Four functions in one

LCD color touch screen

Full automatic operation

Sample clamped automatically

Rotated and moveable platform

Automatic adjustment of load range

Automatic adjustment of speed and stroke

Cutting space adjustment

Cutting number adjustment

Data enables to save and output

Order Information:

BEVS 2205 Multifunction Coating Performance Tester (Include four types accessories)

BEVS 2205/P/010 Accessory for cross cut test

BEVS 2205/P/020 Accessory for pencil hardness test

BEVS 2205/P/030 Accessory for scratch test

BEVS 2205/P/040 Accessory for linear abrasion test

Datasheet
