Case dimensions: 360 x 270 x 150 mm
Weight: 4.5 kg
Material: Diecast, front foil polyester, ABS

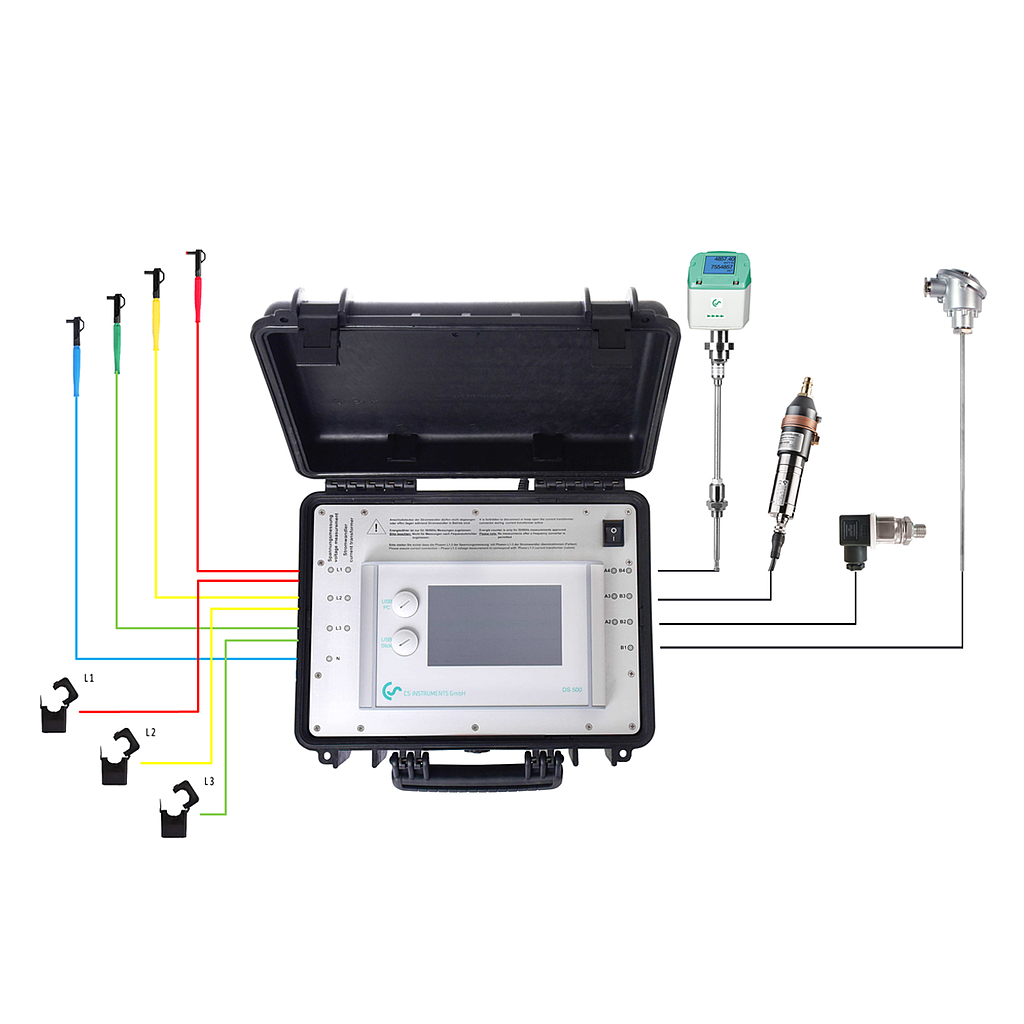

Sensor inputs:
3/7/11 sensor inputs for analogue and digital sensors; freely allocatable. See options
Digital CS sensors for dew point and consumption with FA/VA series SDI interface, RS 485/Modbus RTU digital third-party sensors.
Analogue CS Sensors for pressure, temperature, clamp-on ammeters preconfigured. Analogue third-party sensors 0/4...20 mA, 0...1/10/30 V, pulse, Pt 100/Pt 1000, KTY
Voltage supply for sensors:
24 VDC, max. 130 mA per sensor, integrated mains unit, max. 24 VDC, 25 W.
For 8/12 sensor input version: 2 integrated mains units, each max. 24 VDC, 25 W
Interfaces: USB stick, Ethernet/RS 485 Modbus RTU/TCP, SDI (other bus systems on request), webserver optional
Memory card: Micro SD memory card, memory size 16 GB
Power supply: 100…240 VAC, 50-60 Hz
Colour display: TFT transmissive 7" touch panel, graphics, curves, statistics
Accuracy: Please see sensor specifications
Operating temperature: 0…50°C
Storage temperature: -20…70°C
