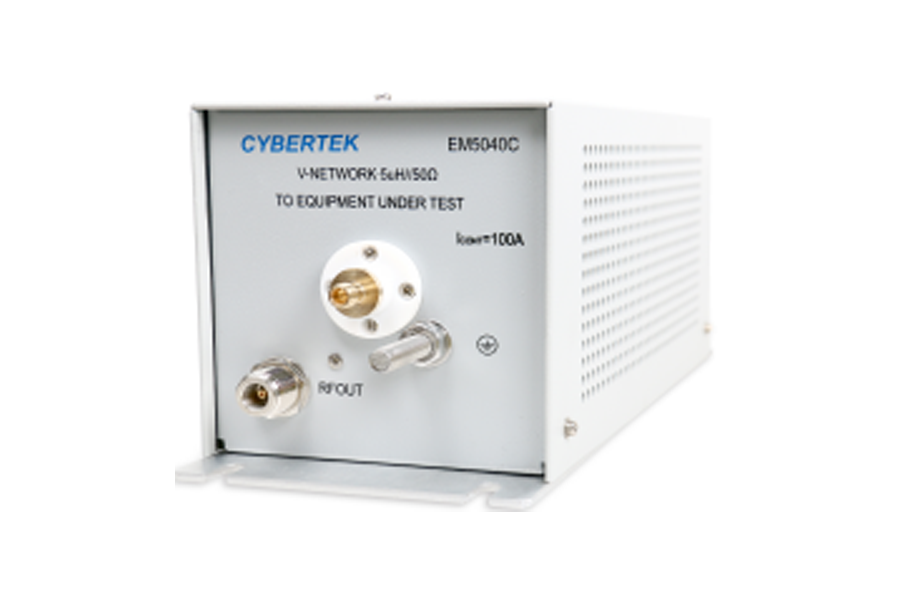

Cybertek EM5040C Line Impedance Stabilization Network (100kHz-200MHz/100A)
Frequency range: 100kHz—200MHz
Circuit type (5uH+1Ω）|| 50Ω
Measurement circuit phase number: Single wire
AC voltage/frequency range: 0～250VAC / 0～400Hz
DC voltage range: 0～600V
Power supply output connector: M8 bolt
Output current: Rating 100A; Short-time maximum current (<30s) 500A
Ground protection: 2*M8 bolt; The bottom metal panel (connected to the ground plane with screws)
Output connector: Standard 50Ω N female
Artificial hand: No
Output signal filter: No
Output signal limiter: No
Output signal common mode and differential mode separator: No
Operating temperature range: 0℃～45℃
Storing temperature: -20℃～70℃
Safety standard: EN61010-1
Size: 322mm（Length）×122mm(Width)×128mm（Height）
Weight: 1.8kg
