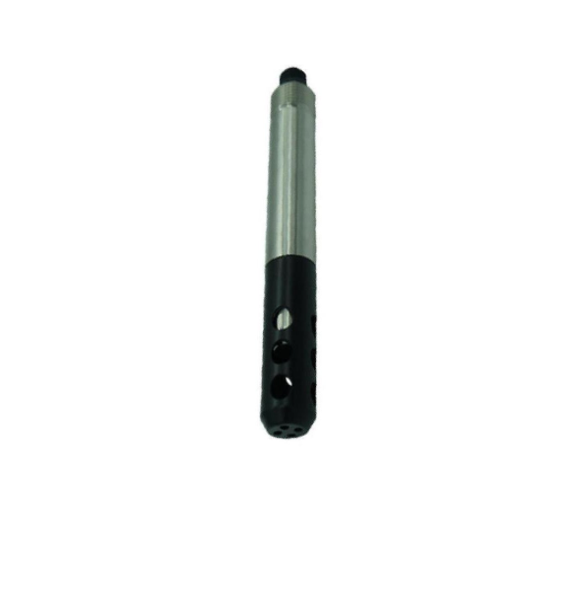

Daruifuno OPD354 Digital Dissolved Oxygen Sensor (0-20mg/L, RS485, 151mm, for DUC2-DO series)

Dissolved oxygen range: 0-20mg/L or 0-200% saturation

Response time: 10 sec

Protection class: 1P68

Maximum water depth: 10 meters

Dissolved oxygen accuracy: ±1%

Sensor Drift: <1%peryear

Temperature range: 0-50℃

Temperature accuracy: ±0.2℃

Sensor interface: support RS-485, MODBUS protocol

Temperature sensor: NTC The probe cable leng this 10m

Assembly: 6-point cylindrical thread, immersion mount

Power information: DC5-24V+/-5%, current <50mA

Cover Diameter: 26mm

Cover Length: 151mm

Calibration: One or two point calibration

Fluorescent cap life: guaranteed for one year (under normaluse)

Sensor Housing Material: Titanium Alloy

Note: The abovetechnicalparametersare the data underthe laboratorystandardenvironment.
