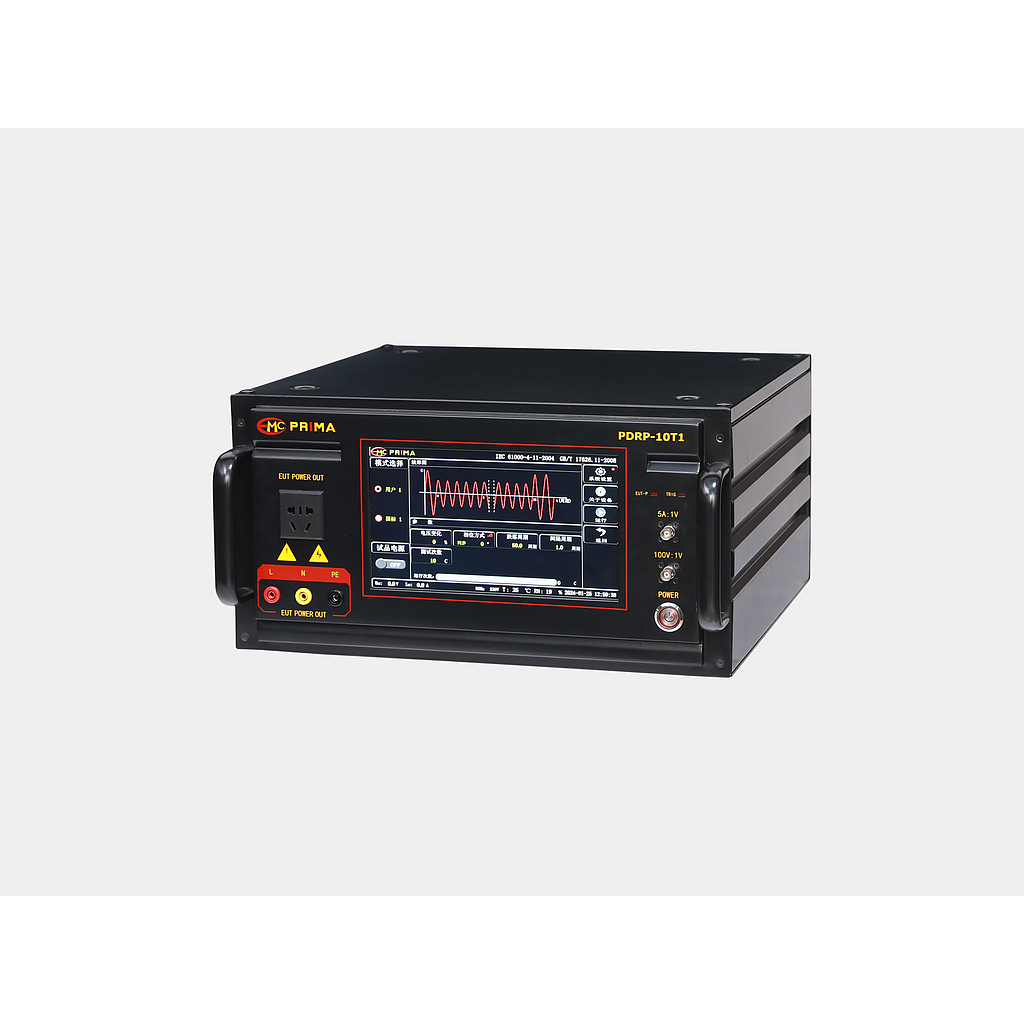

EMC Prima PDRP-10T1 ຕົວຈຳລອງການຫຼຸດລົງຂອງແຮງດັນໄຟຟ້າ AC (0%～120%)

Voltage change range: 0%～120%

Duration: 0.5～6000.0 cycle

Resolution: 0.5 cycle

Switching phase setting: 0～359°or asynchronous

Voltage change repetition: 1～60000c

Interval time: 0.5～6000.0 cycle

Resolution: 0.5 cycle

Trigger mode: Automatic, internal trigger

Decoupling Load capacity: Single phase AC 110～220V

Working power: AC 220V ±10% 50/60Hz

Standard Drop Voltage: 0%、40%、70%、80%、120%

Voltage sag or drop Phase resolution: 1°

Decoupling Load capability: AC 110～220V 10A

- Positive and negative polarity can be switched

- 10.1 inch color touch screen operation

- positive and negative polarity arbitrary conversion

- Chinese and English can be switched

- custom, boost and standard mode

- Built-in RJ45 interface, remote control (optional)

- Drop injection phase angle asynchronous or 0-360° free setting

- IEC61000-4-11/GB/T17626.11
