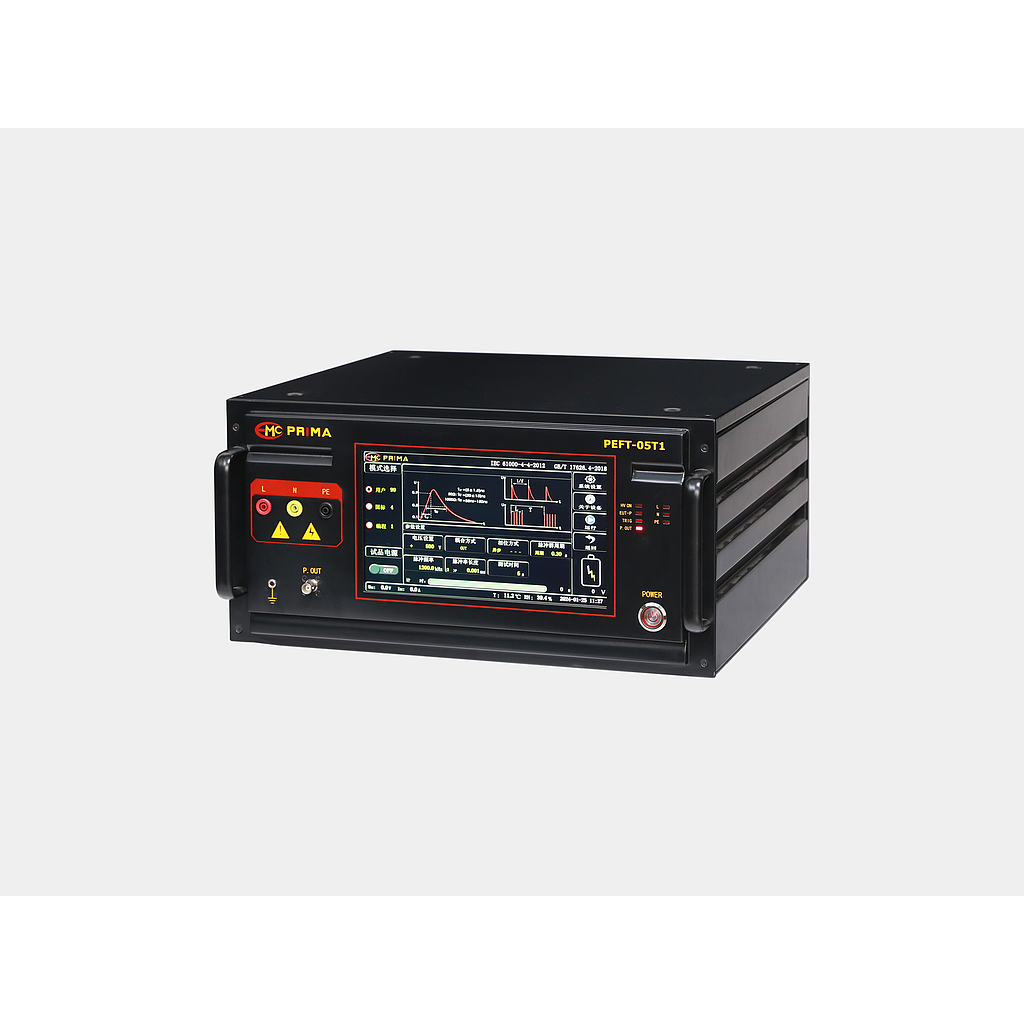

EMC Prima PEFT-05T1 ເຄື່ອງຈຳລອງ EFT/Burst (200V～5000V±10%)

Voltage Output Range: 200V～5000V±10%

Voltage Resolution: 1V

Voltage Step: 1V

Voltage Accuracy: ＜±10%

Output Polarity: +，-，+/-, -/+

T&H: Built-in thermometer and humidity meter

Source Impedance: 50Ω

Rise Time: 5ns±30%

Duration: 50ns±30% (50Ω Load); 35ns～150ns (1000Ω Load)

Frequency Range: 0.1kHz～1200kHz

Frequency Resolution: 0.1kHz

Standard Frequency: 5kHz、100kHz

Pulse Group Duration: 0.001～2550.000ms

Pulse Group Period: 300ms (0.15～99.99s)

Test Duration: 1s～9999s

Direct Output Mode: Through high-voltage coaxial connector

Phase Synchronous: 0°～359° (45Hz～65Hz) (synchronous, automatic, asynchronous)

Coupling: Built-in 1-phase 3-wire coupling

UAC MAX: 240V / 16A

UDC MAX: 220V / 16A

- ergonomic design

- 10.1 inch color touch screen operation

- positive and negative polarity arbitrary conversion

- Chinese and English can be switched

- custom, boost and standard mode

- excellent technology, durable

- the highest test voltage can reach 5kV.

- GB/T 17626.4/IEC 61000-4-4

- IEC/EN61000-6-1
