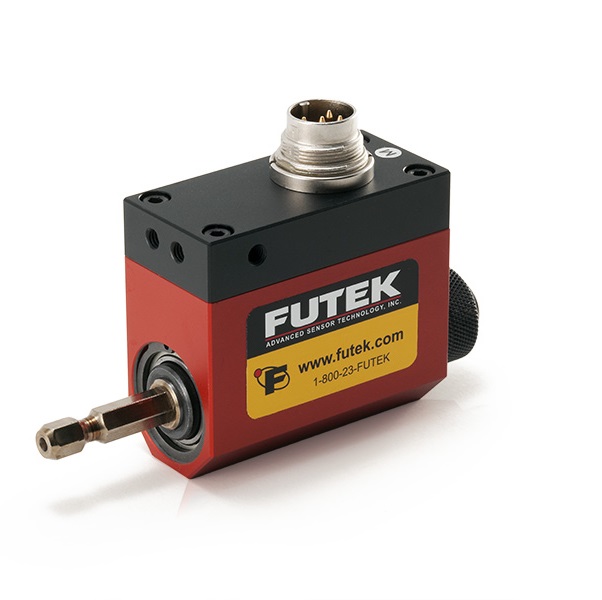

FUTEK TRH300 Slip-Ring Hex-Drive Rotary Torque Sensor (2Nm; 260Nm/rad; IP40)
PERFORMANCE
Nonlinearity: ±0.2% of RO
Hysteresis: ±0.1% of RO
Nonrepeatability: ±0.2% of RO
Rotational Speed: 3000 RPM Max
ELECTRICAL
Rated Output (RO): 1 mV/V nom (2 Nm); 2 mV/V nom (6–20 Nm)
Excitation (VDC or VAC): 5 to 11
Connection: 6 pin Binder Series #581 (09-0323-99-06)
MECHANICAL
Weight (approximate): 0.7 lb [0.30 kg]
Safe Overload: 150% of RO
Material: Aluminum (Housing)
Steel Alloy (Shaft)
IP Rating: IP40
TEMPERATURE
Operating Temperature: 14 to 194°F (–10 to 90°C)
Compensated Temperature: 41 to 122°F (5 to 50°C)
Temperature Shift Zero: ±0.01% of RO/°F (±0.02% of RO/°C)
Temperature Shift Span: ±0.01% of Load/°F (±0.02% of Load/°C)
CAPACITIES
Nm [in-lb]: 2 [18]
Max Axial Force lb [N]: 4.5 [20]
Max Radial Force lb [N]: 4.5 [20]
Torsional Stiffness Nm/rad: 260
