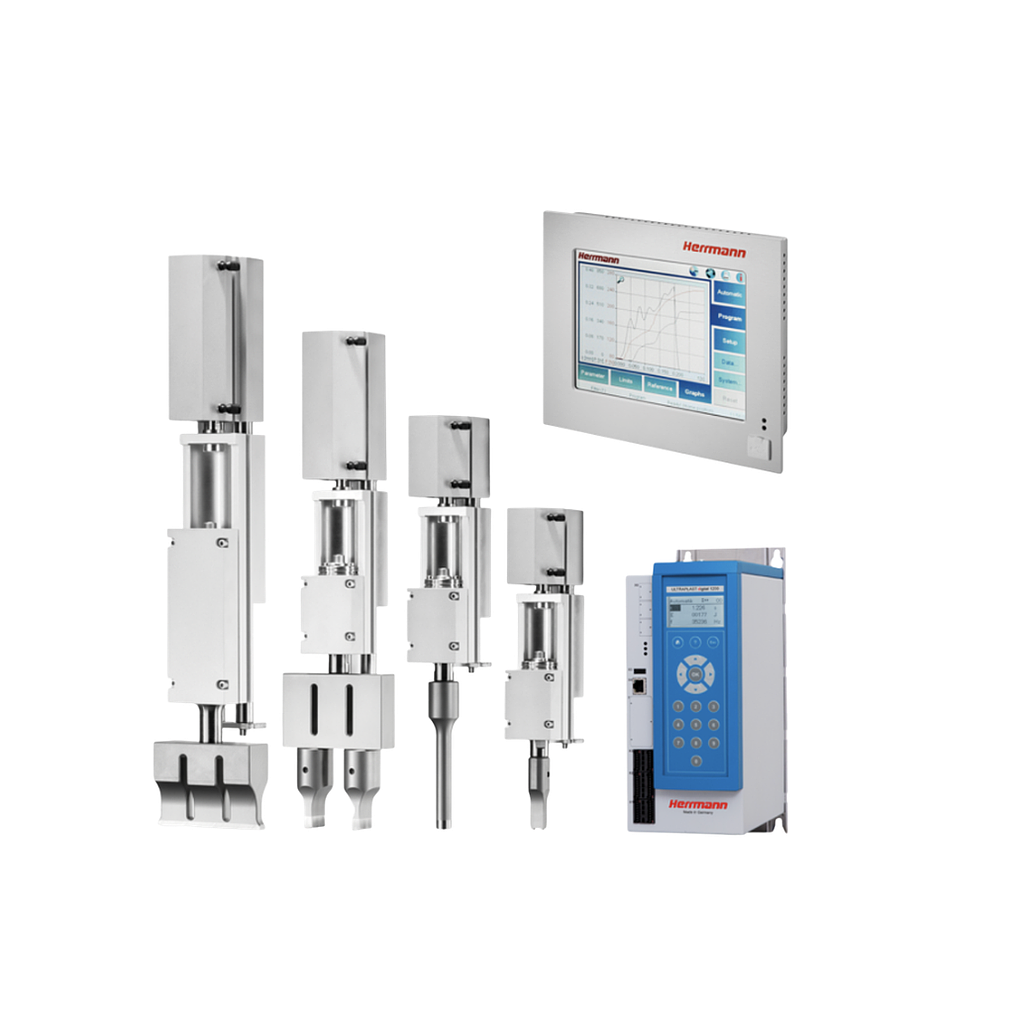

Herrmann VE COMPACTLINE VARIO 35kHZ ລະບົບ COMPACTLINE (35 kHz, 1200 W)

Frequency: 35 kHz

Generator power: 1200 W

Weld force min./max. at 6 bar: 30 / 680 N

Stroke: 40 / 100 mm

Outside dimensions (W x H x L, depending on type and stroke, without sonotrode): 56 / 75 / 264 - 417 mm

Operating device: 8.4" Touchscreen color

Operating modes: 5

Application memories: 32

Number of saved welds (weld data): 100 per Memory

Control of auxiliary functions (optional): max. 4

In space-saving integration tasks in automation lines and in robot applications you can count on the familiar Herrmann ease of use and quality. The VE COMPACTLINE VARIO actuator in combination with the weld process controller VARIO control provides excellent, reproducible weld results and visualization of the ultrasonic welding process supports parameter finding and recording for quality purposes. Proportional valve technology combined with appropriate position measuring systems complete this 35 kHz weld system with a generator power of 1,200 W.

Flexible weld process controller: VARIO control

Graphical weld process monitoring

PropControl: proportional valve technology

Application-oriented position measuring systems

High degree of customization
