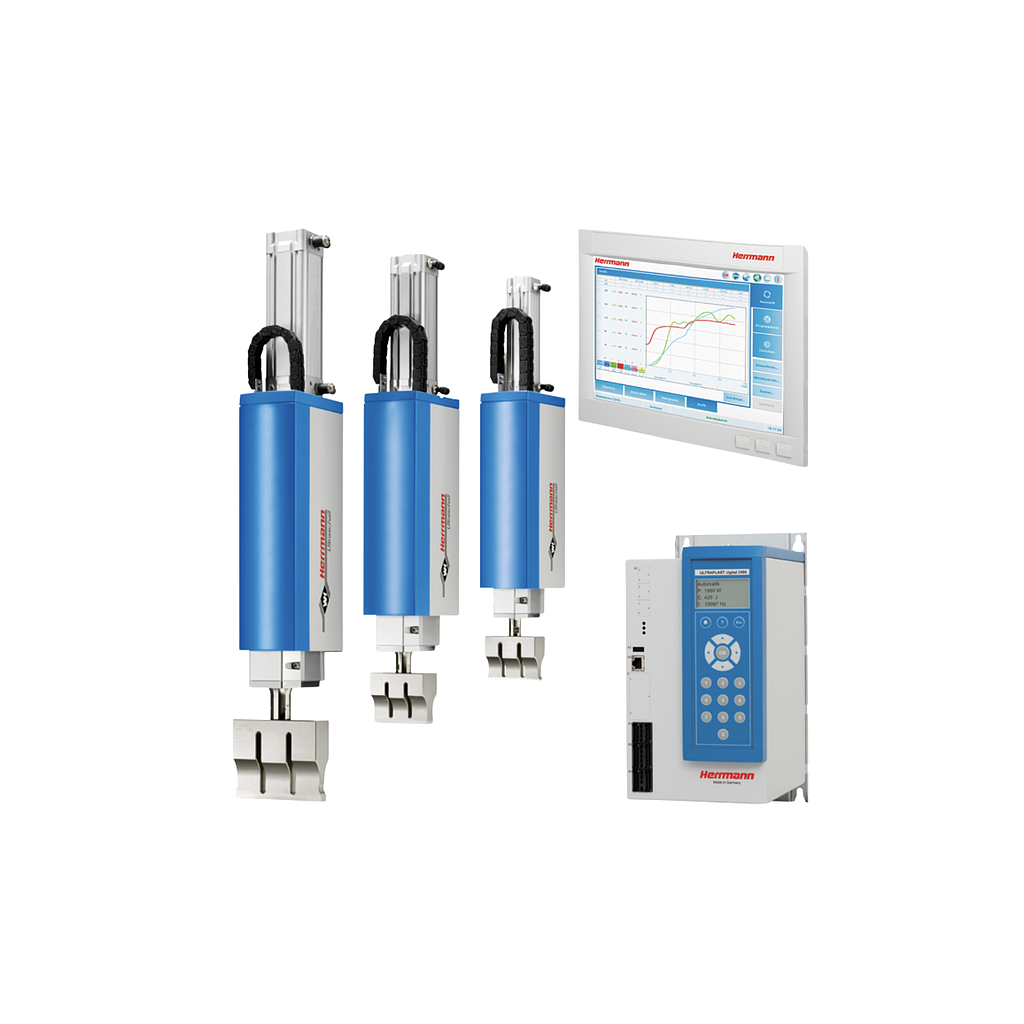

Herrmann VE SLIMLINE DIALOG 20 kHz ລະບົບ SLIMLINE (20 kHz, 6200 W)

Frequency: 20 kHz

Generator power: 2400 / 4800 / 6200 W

Weld force min./max. at 8 bar: 30 / 2490 N

Stroke: 150 mm

Outside dimensions (W x H x L, without sonotrode): 105 / 170 / 696 mm

Operating device: 15" Touchscreen color

Operating modes: 7

Application memories: 1000

Number of saved welds (weld data): 300 per Memory

Control of auxiliary functions (optional): max. 6

Fast movement sequences in the automation environment mean money. The ultrasonic actuators VE SLIMLINE DIALOG with the pneumatic drive system HMC meet these requirements. The servo-pneumatic drive patented by Herrmann Ultraschall allows the stack to be freely positioned and ensures fast stroke motion, and its SoftTouch mode allows gentle contact with the plastic component to be joined in ultrasonic welding. The necessary weld forces and force profiles can be chosen and set as required. This protects sensitive weld joints and part surfaces.

Weld process control: DIALOG control

SpeedControl: freely programmable servo-pneumatic drive system HMC

Reduced non-production times thanks to fast travel movements

Pneumatics module in one assembly unit

Interfaces for simple system integration
