The clearance between two mating surfaces is often only a few hundredths of a millimeter, yet it has a direct impact on sealing performance, vibration levels, and the service life of an assembled component. Therefore, the accuracy of a feeler gage depends not only on the manufacturing precision of its blades but also on selecting the correct blade thickness and inserting it into the gap properly.
How Does a Feeler Gauge Measure Clearance ?
A feeler gauge consists of multiple precision-ground steel blades with thicknesses typically ranging from 0.02 mm to 1.00 mm. Each blade has a fixed thickness and serves as a reference standard for determining the clearance between two surfaces.
Unlike a caliper or micrometer, which directly measures dimensions, a feeler gauge works by matching blade thickness to the gap. The measured value is the thickness of the largest blade that can slide through the clearance with a slight, even drag. When the clearance exceeds the thickness of a single blade, multiple blades can be stacked together to obtain the required total thickness.
Selecting the Right Feeler Gauge Blade
Accurate measurement begins with choosing the appropriate blade. Trying every blade from the thinnest to the thickest not only wastes time but also causes unnecessary wear on the blade edges, making it more difficult to judge the correct drag.
During equipment maintenance or mechanical assembly, it is good practice to estimate the expected clearance from engineering drawings or manufacturer specifications. Start with the blade closest to the estimated value, then move one size thicker or thinner until the correct fit is achieved. This approach speeds up inspection while minimizing blade wear.
Proper Feeler Gauge Measurement Technique
Clean the Contact Surfaces
Before taking any measurement, clean both mating surfaces as well as the taper gage. Oil, metal particles, burrs, or other contaminants can alter the actual clearance, particularly when inspecting components with tight tolerances.
Insert the Blade Parallel to the Gap
The feeler gauge should be inserted parallel to the clearance so that the entire blade contacts the surfaces evenly. If the blade is tilted or twisted, its edge may rub against the side of the gap, creating a false impression that the clearance is tighter than it actually is.

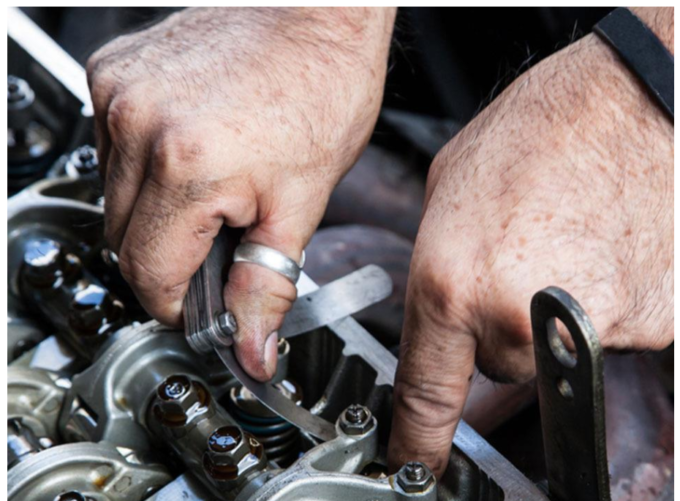

This issue is commonly encountered when measuring valve lash, plain bearings, or flange joints.
Evaluate the Drag Force
A properly selected feeler gauge should move through the gap with a smooth, slight resistance. It should neither slide through freely nor require excessive force.
If the blade passes through with almost no resistance, the actual clearance is larger than the blade thickness. Conversely, if significant force is required to insert or remove the blade, the measurement is influenced by compression, leading to an overestimation of the clearance.
Verify with the Next Larger Blade
Once the appropriate blade has been identified, check the measurement again using the next thicker blade. If the larger blade cannot enter the gap while the previous blade still slides with slight drag, the measurement can be considered more reliable.
Why Can Measurements Differ at the Same Location ?
Measurement variations are usually caused by inspection technique rather than the gauge itself.
Operator force: Even slight differences in insertion force or blade angle can significantly change the perceived drag.
Surface condition: Oil, metal debris, or burrs may alter the clearance by only a few hundredths of a millimeter, but this is enough to affect precision assemblies with tight tolerances.
Stacking multiple blades: In precision applications, the number of stacked blades should be kept to a minimum. Dirt, thin oil films, or slight curvature between blades can introduce small cumulative errors.
Gauge maintenance: Rust, chipped edges, or deep scratches may not change the blade's nominal thickness, but they affect how the blade contacts the workpiece, reducing measurement consistency.
Environmental conditions: For high-accuracy inspections, measurements should be performed after the workpiece has stabilized at room temperature. Mechanical dimensional inspection standards commonly specify a reference temperature of approximately 20°C to minimize errors caused by thermal expansion.
Measure multiple locations: For long mating surfaces or components that may warp, measurements should be taken at several points rather than a single location. This provides a more accurate assessment of clearance distribution across the entire assembly.
Storing a Feeler Gauge Properly
After each use, wipe off oil, dust, and metal particles before folding the blades back into the holder. Applying a thin layer of rust-preventive oil helps protect the blades from corrosion during long-term storage.
A feeler gauge should never be used as a scraper, pry tool, or substitute for other hand tools. Even if only one blade becomes bent or permanently deformed, the accuracy of the entire gauge set can no longer be guaranteed.
The accuracy of a thickness feeler gage depends on far more than the nominal thickness of its blades. Correct blade selection, proper insertion technique, consistent drag force, and suitable inspection conditions all contribute to reliable measurements. By cleaning the contact surfaces, inserting the blade correctly, and confirming the result with the next larger blade, users can achieve repeatable measurements that accurately reflect the actual condition of mechanical components.
