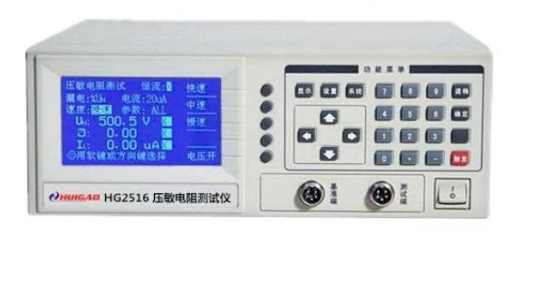

Huigao HG2516 ຕົວທົດສອບ Varistor (1200 V-2000 V)

Test parameters: ALL, UNI.0, UNO.1, V/I

Voltage display:

When set voltage < 135V or 200V

When set voltage > 135V or 200V

Kr display: range 0.000 – 999.9

Sweep current display: range 0.00µA – 2200.0µA

Test speed:

Three levels: Fast 55ms/time, Medium 76ms/time, Slow 112ms/time

Single levels: Fast 25ms/time, Medium 32ms/time, Slow 44ms/time

Leakage voltage measurement accuracy: ≤ ±1%

Voltage display accuracy: 0.5% ± 0.1V

Output resistance: 2kΩ

No-load voltage stability: ≤ ±0.5%

Sweep voltage: 5 – 145V, divided into <135V and >135V ranges

Leakage current range: 0.00µA – 2200.0µA

Leakage current accuracy:

1000.0µA ± 5µA

100.0µA ± 2.0µA

Dimensions: 360 × 325 × 105 mm (W × H × D)

Weight: approx. 6.8 kg

Power supply: 220V ±10%, 50Hz/60Hz ±5%

Operating conditions: 0°C – 40°C, humidity < 90%RH
