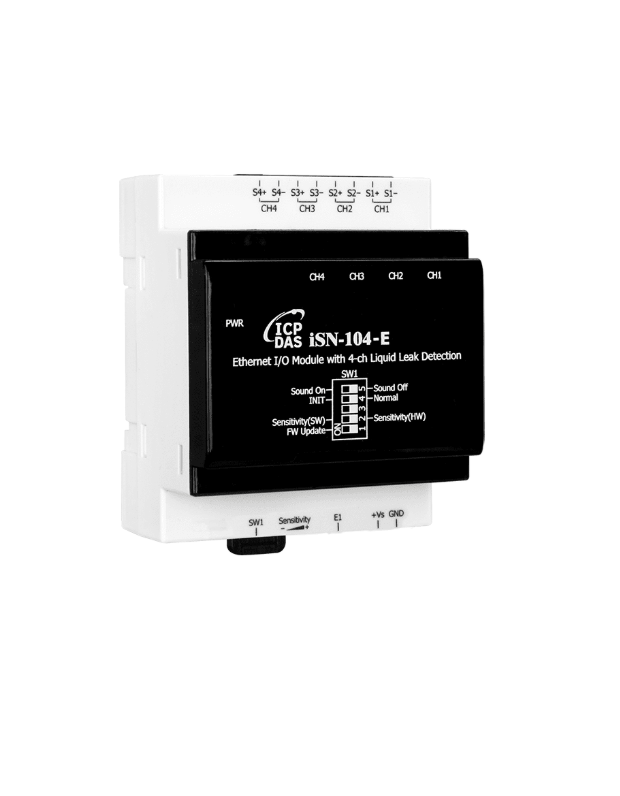

ICP DAS iSN-104-E ໂມດູນກວດຈັບການຮົ່ວໄຫຼຂອງແຫຼວ (4CH)
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for power
ESD (IEC 61000-4-2): ±8 kV air discharge for random poin
LED Indicators
Status: 1 as power indicator; 4 as alarm indicators
System
Alarm: For both liquid leak detection and cable-break detection
Buzzer: Yes; can be muted by a push button
Liquid Leak Detection
Channels: 4
Liquid Type: Water, 2 µS/cm
Sensor Type: Probe for point detection or cable for line detection
Max. Cable Length: 500 meters
Includes: Liquid leak detection cable and extension cable
Sensitivity Range: 26 kΩ ~ 580 kΩ (rotary switch adjustable)
Cable-break Detection: Yes
For Liquid Leak Detection Cable: CA-LLD-DC100X-Lxxx only
Ethernet
Ports: 1 × RJ-45, 10/100 Base-TX
PoE: Yes
Access Control: ID, password and IP filter
Protocol: Modbus TCP/UDP, MQTT
Power
Reverse Polarity Protection: Yes
Input Range: 10–48 VDC
Consumption: 1.6 W max.
Powered from PoE: Yes, IEEE 802.3af, Class 1
Mechanical
Dimensions (mm): 72 × 95 × 57 (W × L × H)
Installation: DIN-rail mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10–90% RH, non-condensing
