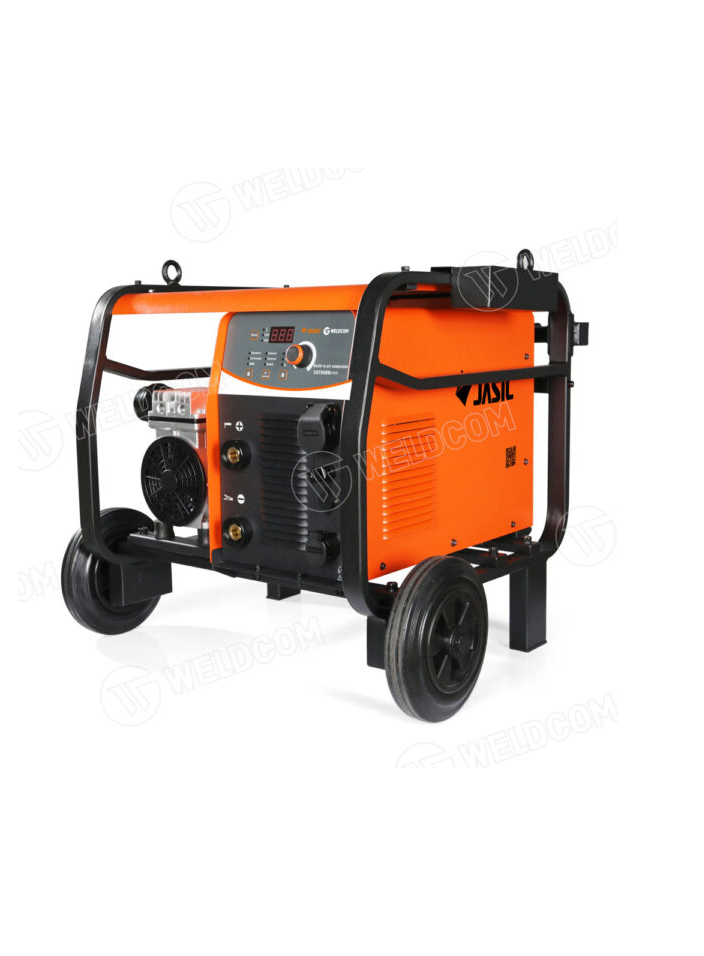

JASIC CUT80DN L233 ເຄື່ອງຕັດພລາສມາ

Input Voltage: Single-phase AC 220V ±15%, 50 Hz; Single-phase AC 380V ±15%, 50 Hz

Rated Power (kVA): Single-phase 220V: 7.5; Single-phase 380V: 10

Cutting Current Adjustment Range (A): Single-phase 220V: 20–45; Single-phase 380V: 20–60

Welding Current Adjustment Range (A): Single-phase 220V: 50–160; Single-phase 380V: 50–200

No-load Voltage – Cutting Mode (V): Single-phase 220V: 310; Single-phase 380V: 280

No-load Voltage – Welding Mode (V): Single-phase 220V: 70; Single-phase 380V: 63

Duty Cycle at Maximum Cutting Current (%): 30

Power Factor: ≥ 0.7

Efficiency (%): ≥ 85

Protection Class: IP21

Cooling Method: Air cooling

Power Source Dimensions (with handle) (mm) (may vary depending on production batch): ~607 × 649 × 580

Power Source Weight (kg) (may vary depending on production batch): ~43
