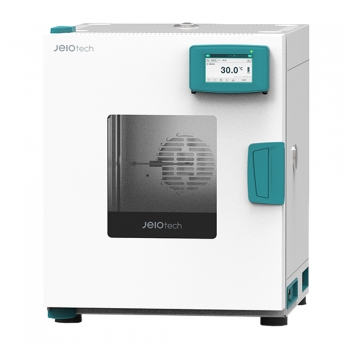

JEIOtech OF4-05P ເຕົາອົບ Convection ບັງຄັບ

part_type: Solid door (without window)

Control Panel: 5inch TFT Color LCD

Function - Graph: Available checking the stored and real-time data as graphs

Function - Scehdular: Set day, time, and program No

Communication interface: USB, RS-232, BMS

Function - Data storage: Save the test data in CSV format

Chamber volume (L/cu ft): 61/2.15

Function - Program setting: 10 program, 10 step, start temp.

Max. Load per shelf (kg/lbs): 30/66.1

Function - Fan speed adjustable: Three-step wind speed settings

Dimensions - Net weight (kg/lbs): 53/116.8

Function - Recently event record: 36ea

Temperature 1) - Range (℃/℉): Amb. + 10~250 / Amb. + 18 ~ 482

Function - Recommended temperature: Three frequently used temperature settings suggested

Dimensions - Exterior (W x D x H, mm/inch): 558 x 648 x 684 / 21.97 X 25.51 X 26.93

Dimensions - Interior (W x D x H, mm/inch): 380 x 330 x 480 / 14.97 x 13.0 0x 18.90

Electrical requirements (230V, 50/60Hz, A): 6.4

Number of Air change per hour at 100 ℃ 2): 22

Shelves - Quantity of shelves (Standard/max.): 2/5

Temperature 1) - Heating time to 100℃ (min): 10

Temperature 1) - Recovery time at 100℃ (min): 4

Temperature 1) - Variation at 100℃ (±℃/±℉): 1.9/3.42

Function - Temp. ramping rate (℃/min. / ℉/min.): 0~9/0~16.2

Temperature 1) - Fluctuation at 100℃ (±℃/±℉): 0.3/0.54
